BondTech LGX Shortcut Mosquito Hotend

Developed for more flexibility

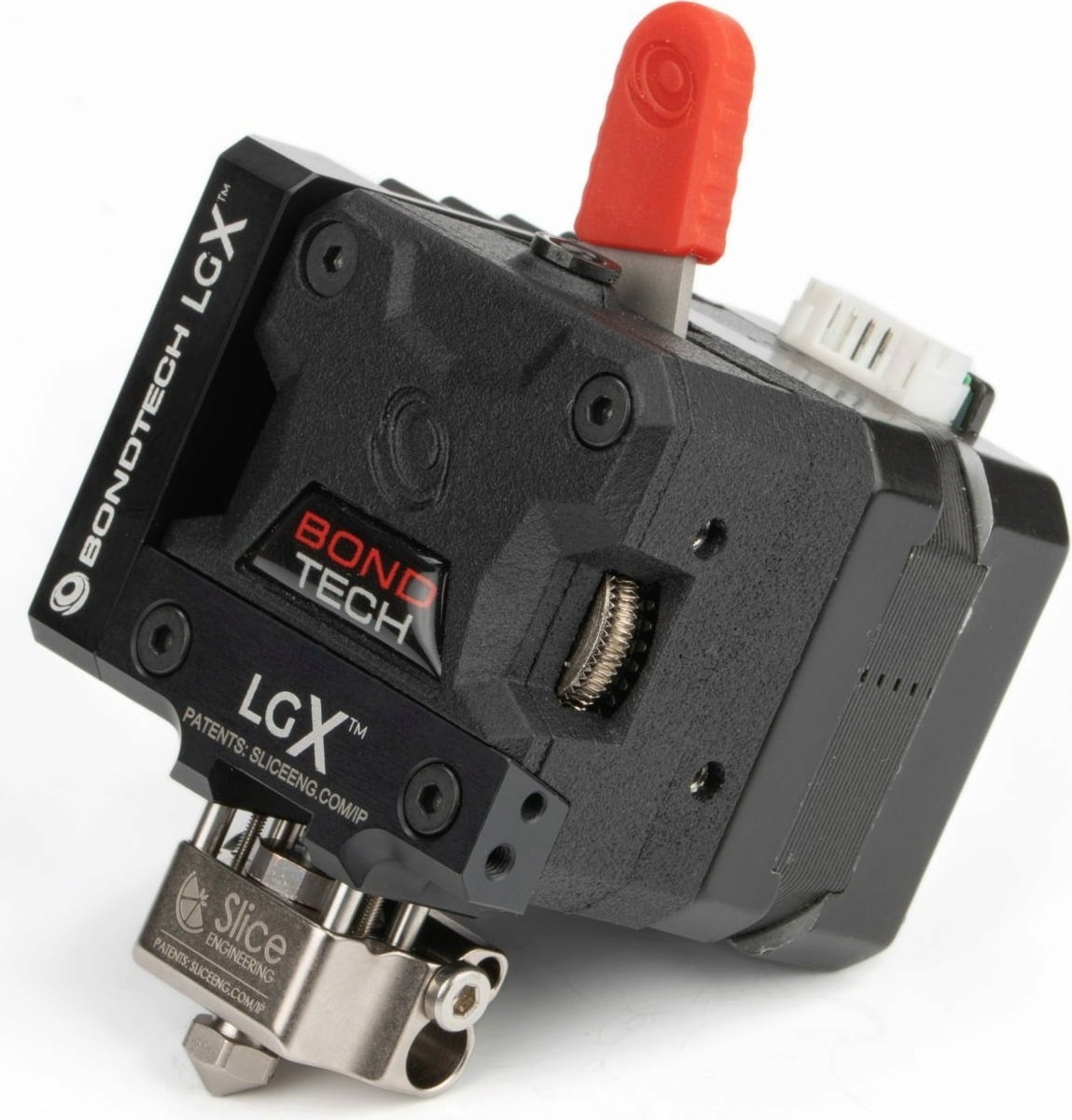

The LGX Shortcut Mosquito is a special hotend for use with the LGX extruder. With the LGX Extruder, it forms a print head that excels at printing most materials and especially soft and flexible filaments.

Designed to be flexible

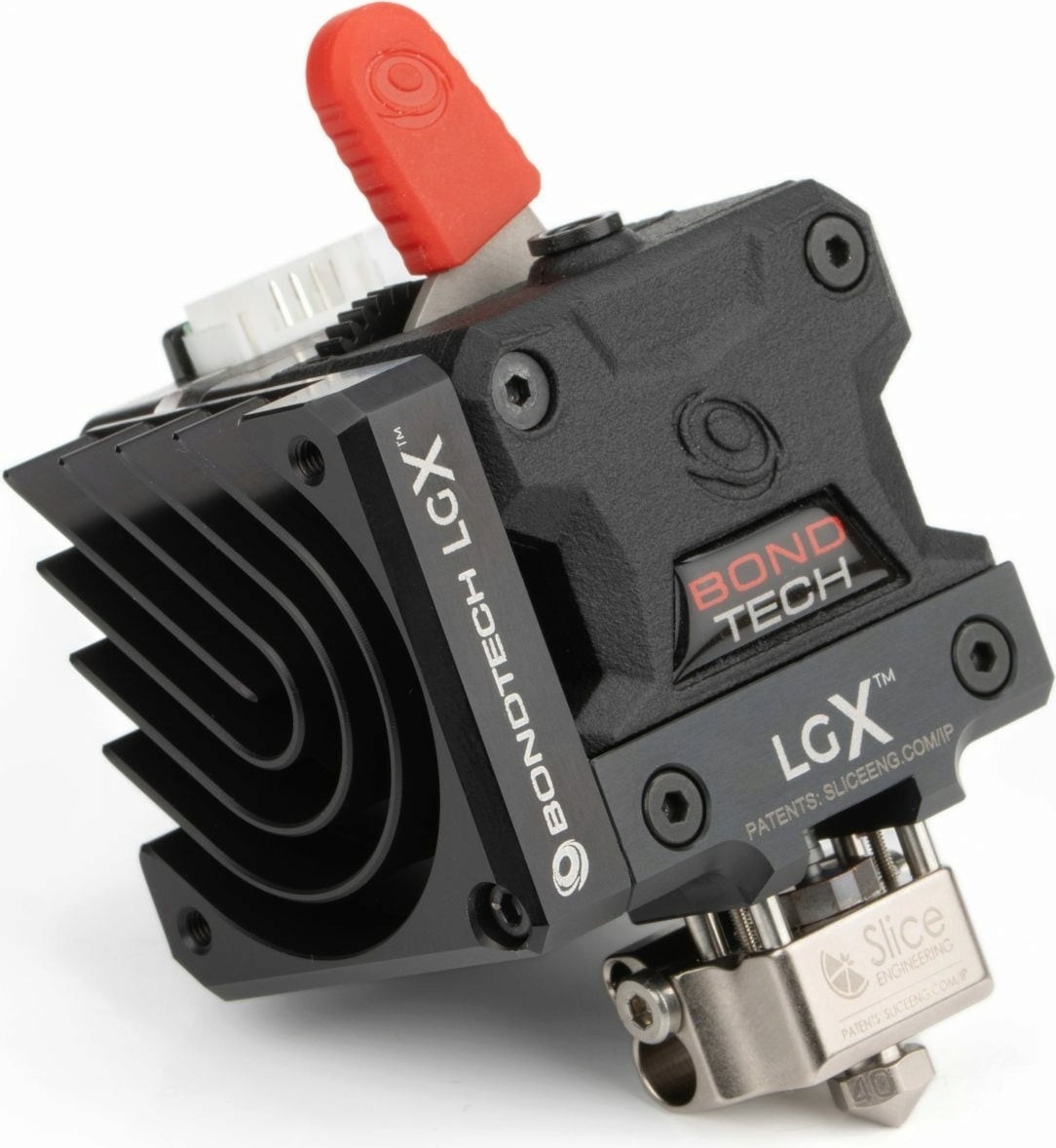

The LGX Shortcut Mosquito Hotend includes a reversible heatsink that can be attached to the left or right side of the cooling block. The heatsink also includes the hole pattern for attaching 40 x 40mm fans.

Cooling down the heatbreak

Bondtech's tests indicate that one 4010 fan is sufficient to cool the heatsink and cold zone of the heatbreak, even with a small contact area with the heatsink.

If you have an application that requires additional cooling, try a 4020 fan or 2 LGX heatsinks, one on each side.

Advantages of the LGX Shortcut Mosquito Hotend

• Enables quick processing of softer materials
• Keeps the print head small and light
• Mounting is possible in different ways
• Nozzle change with one hand

Compatible Nozzles

The heater block included in this product is compatible with the RepRap nozzle standard. Here is a list of compatible versions.

• Bondtech brass nozzle
• Bondtech nozzle made of coated brass
• Bondtech CHT nozzle made of coated brass
• Slice Engineering Copper Nozzle
• Slice Engineering Vanadium Steel Nozzle (for Abrasive Filaments)

Note: The LGX Shortcut Mosquito Hotend is NOT compatible with 3DSolex 1.75mm nozzles.

Technical specifications:

• Max. working temperature (nozzle): 450 °C
• Maximum tightening torque of the extruder screws: 0.3 Nm
• Maximum tightening torque on the heatsink/cold block screw: 0.6 Nm
• Hotend Net Weight: 61g
• Packing dimensions: 80 x 103 x 73 mm

Contents of delivery:

• 1x black anodised LGX™ aluminium cooling basin
• 1x air-cooled black anodised LGX™ aluminium cooling block
• 1x Air-Cooled LGX™ Cold Block Mounting Hardware
• 1x Mosquito Hotend (Without Heatsink)
• 1x BondTech M6x1x7.5 coated brass nozzle 0.4 mm (V6)
• 1x bag of silver-based thermal paste
