LDO Motors Orbitool Toolboard Kit, Smart Orbiter 3

Powerful board specifically for the Orbiter Extruder

1 Customer Rating

€ 46,34 € 51,49 -10%

(Price shown includes 23% VAT. - Excludes delivery costs)

Model type : Smart Orbiter 3

In stock

Delivery by Tuesday, 05 August if you order by Monday at 23:59.

Ireland: Free standard delivery from € 87,90
More information regarding shipping & delivery

Features & Advantages

  • For Orbiter Extruder
  • STM32F042 microcontroller
  • Versatile connectivity

Item no.: LDO-LDO-O3-TBK, EAN: 6975415152726

Product information & technical details

Description

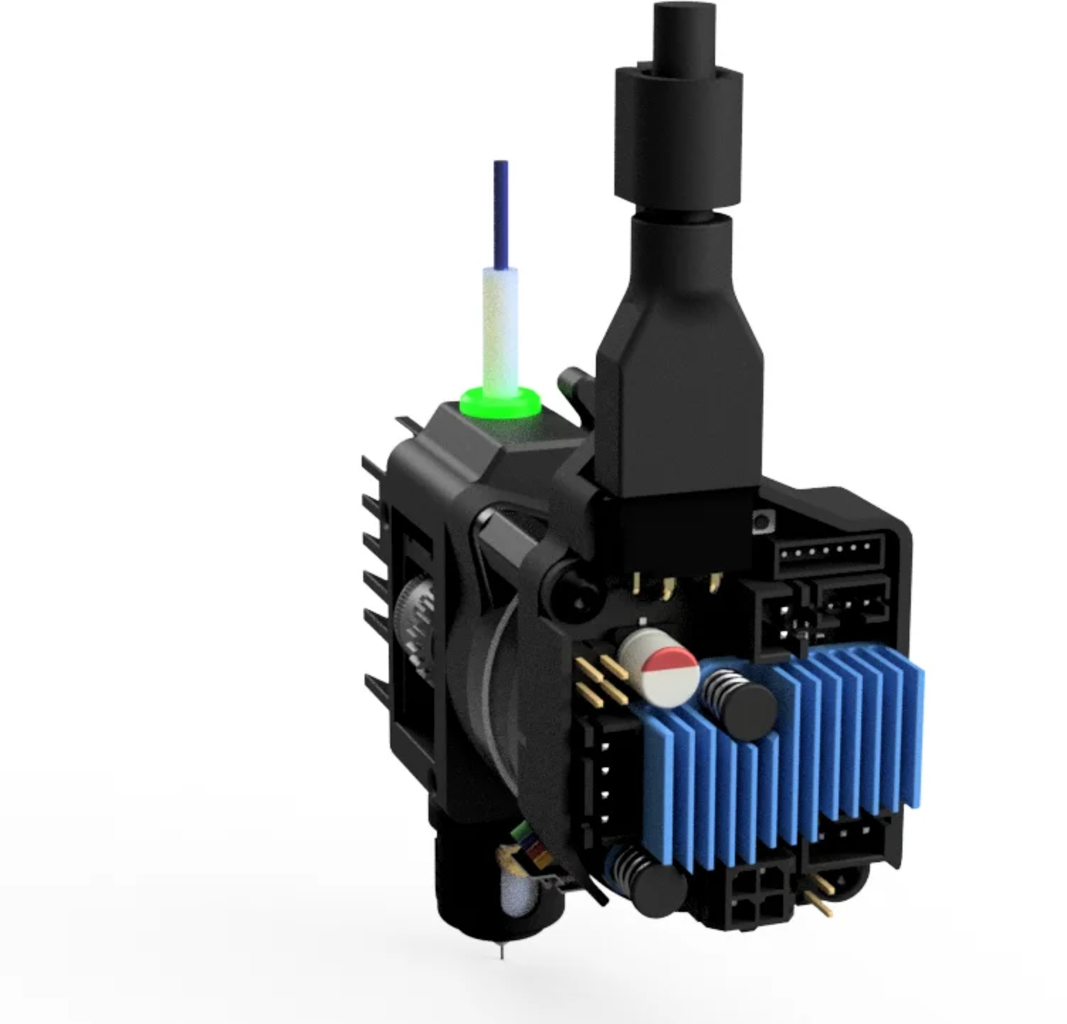

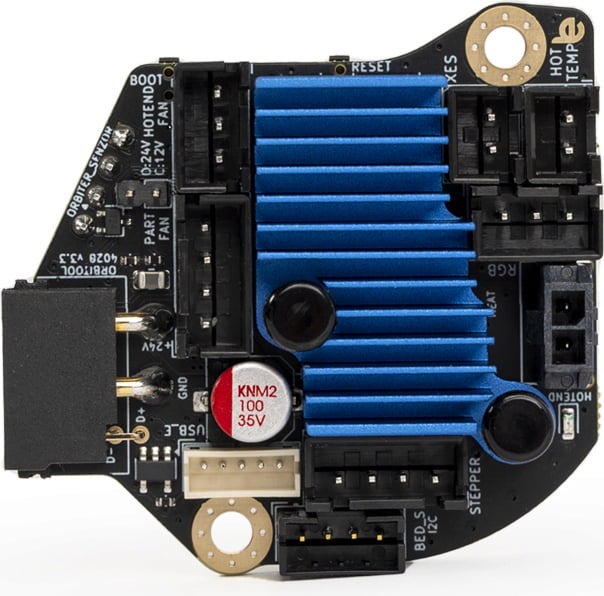

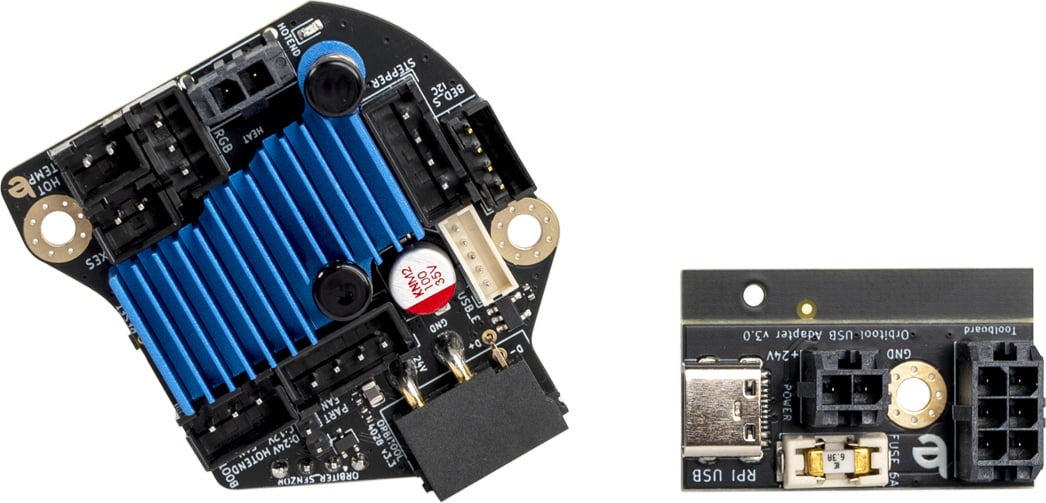

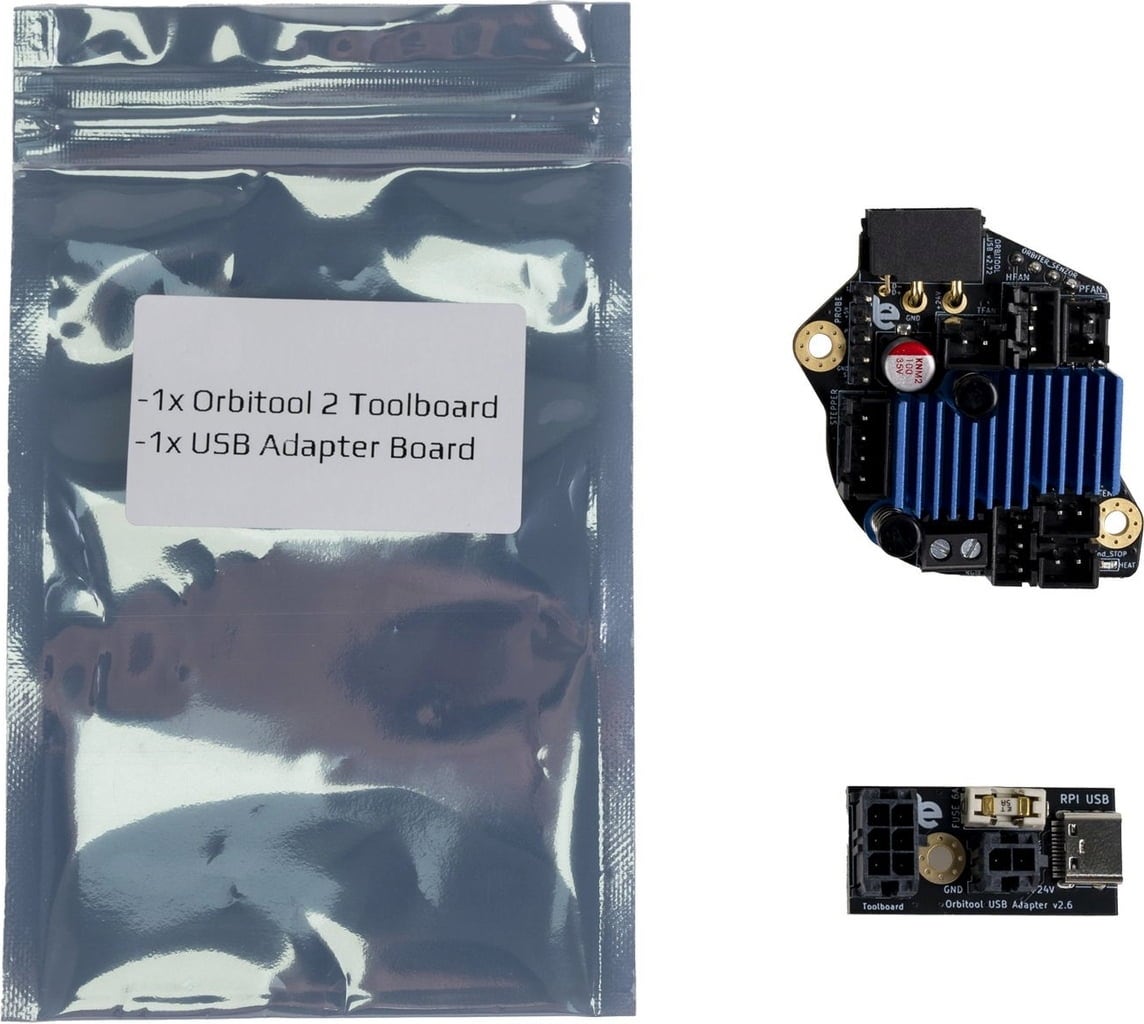

The Orbitool Toolboard Kit from LDO Motors has been specially developed for use with the Orbiter extruders. The board is designed to offer protection from common user errors and 3D printer defects to ensure maximum ease of use and make working with the printer more enjoyable and efficient.

Main features at a glance:

  • Microcontroller with 48MHz,

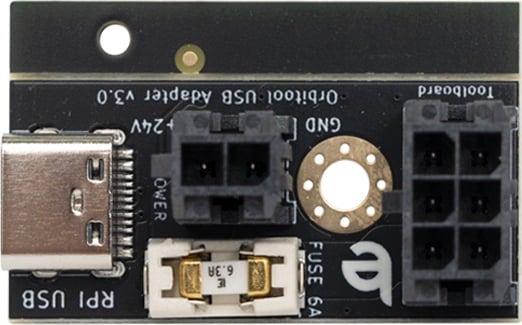

  • USB communication with Raspberry Pi,
  • Integrated acceleration sensor,
  • Powerful extruder stepper driver,
  • Direct connection to the Orbiter sensor,
  • PWM-controlled fan outputs,
  • DC-DC converter-based hotend fan driver, compatible with 12/24 V fan types,
  • Hotend temperature sensor input is compatible with standard NTC or PT1000 temperature sensors,
  • I/O for bed levelling,
  • X-Stop sensor input,
  • RGB LED driver output,
  • Integrated temperature sensor,
  • Efficient thermal management system.

► Versions:

Orbiter 2 Smart Orbiter 3 Orbiter 2S
Microcontroller STM32F042 STM32F072
Accelerometer LIS2DW12 ADXL345
Driver TMC2209 TMC2240
Fan Output 2 x PWM 1 x PWM supports 2-, 3- and 4-wire fans with 12 V or 24 V

⇒ GITHUB
