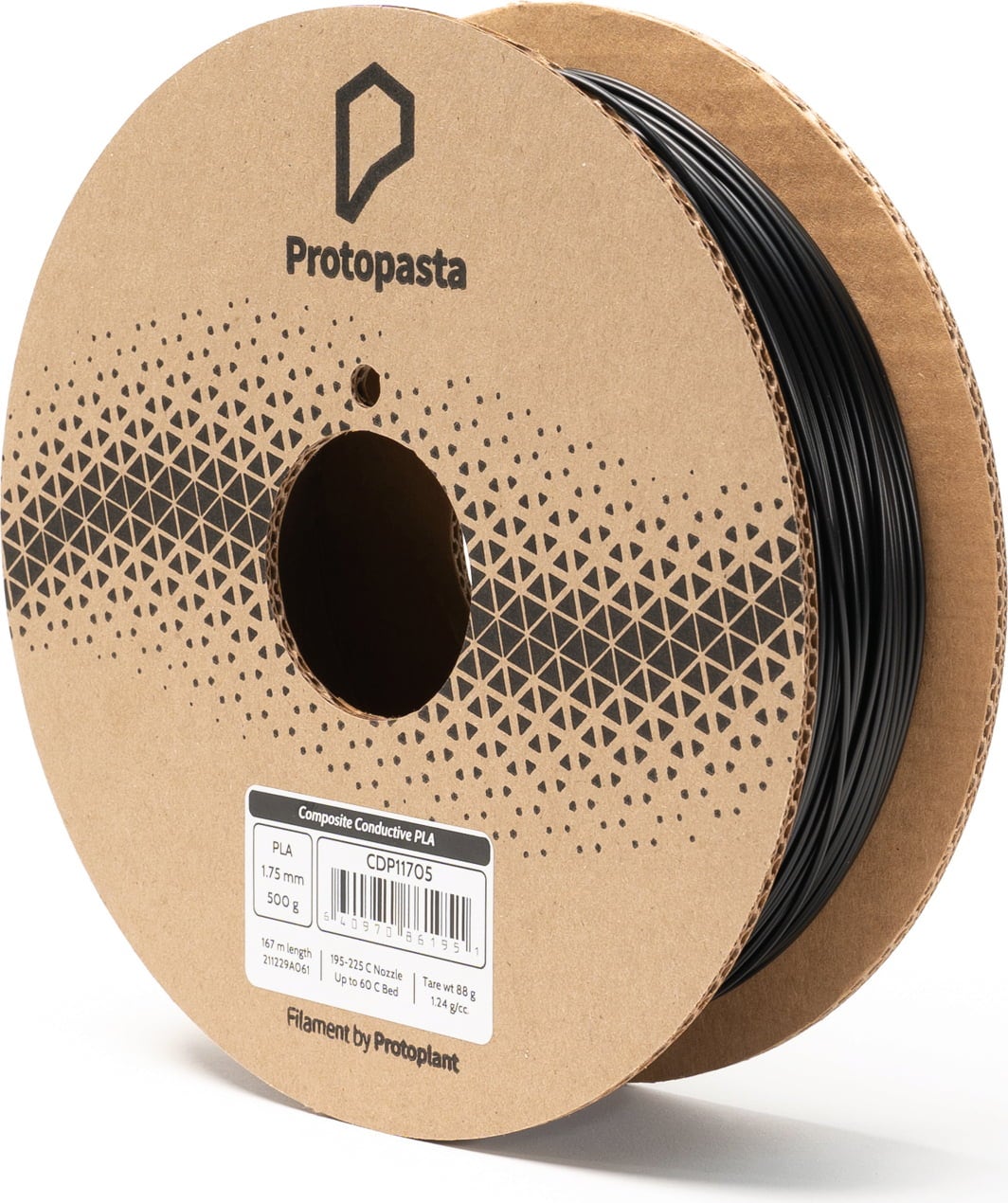

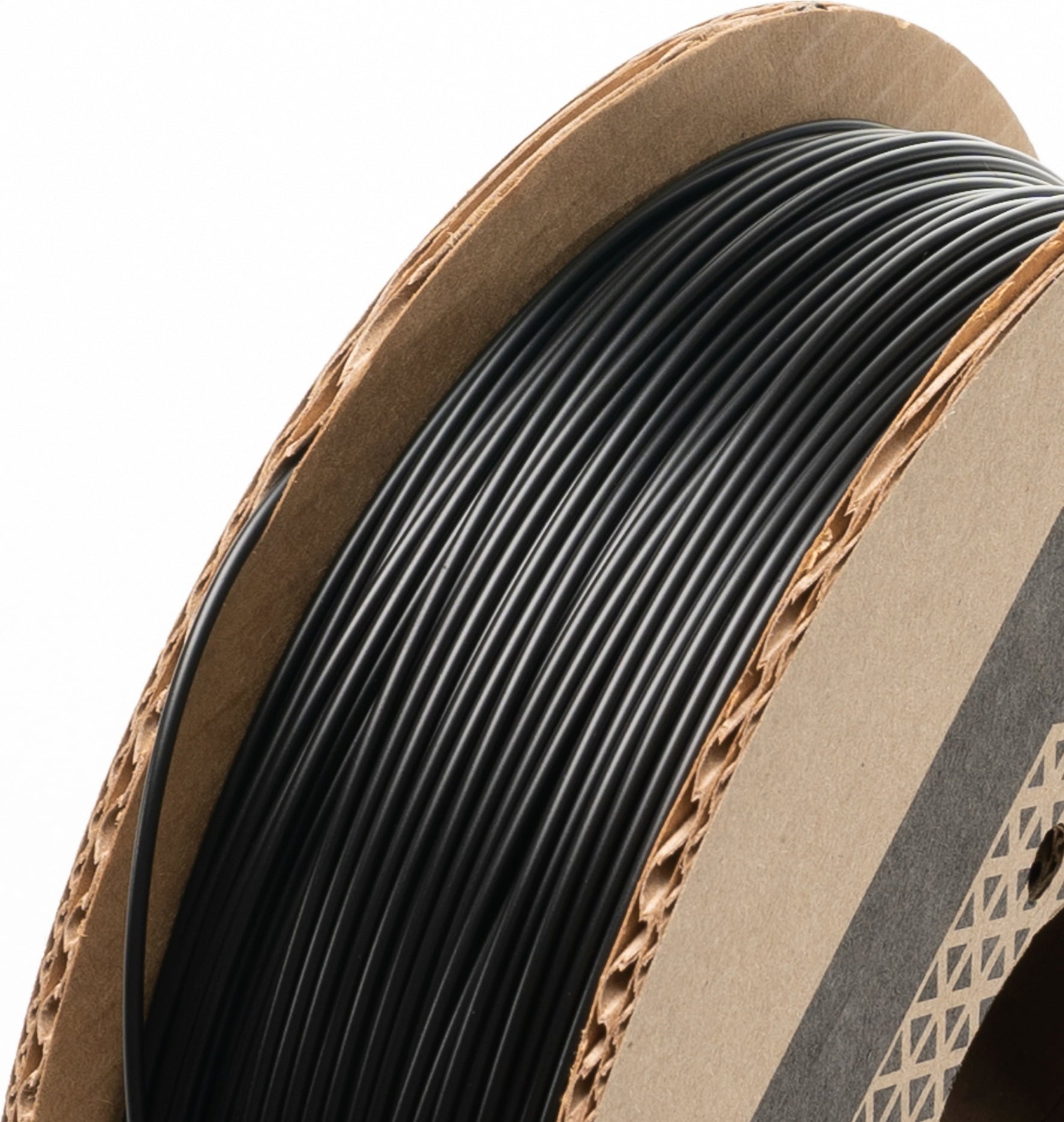

Protopasta Electrically Conductive Composite PLA, 1,75 mm / 500 g

Electrically conductive PLA with high breaking strength

€ 59,99

(€ 119,98 / kg, Price shown includes 23% VAT. - Excludes delivery costs)

Material:
  • Protopasta Brass Composite HTPLA

    Protopasta

    Brass Composite HTPLA

    Brass filled metal PLA filament

    € 59,99
    (€ 119,98 / kg)
  • Protopasta Bronze Composite HTPLA

    Protopasta

    Bronze Composite HTPLA

    Bronze filled metal PLA filament

    € 59,99
    (€ 119,98 / kg)
  • Protopasta Copper Composite HTPLA

    Protopasta

    Copper Composite HTPLA

    Copper filled metal PLA filament

    € 59,99
    (€ 119,98 / kg)
  • Protopasta Iron Composite PLA

    Protopasta

    Iron Composite PLA

    Iron-filled, ferromagnetic PLA filament

    € 44,99
    (€ 89,98 / kg)
    5.0 (1)
  • Protopasta Steel Composite PLA

    Protopasta

    Steel Composite PLA

    High density steel PLA filament

    € 59,99
    (€ 119,98 / kg)
  • Protopasta Electrically Conductive Composite PLA

    Protopasta

    Electrically Conductive Composite PLA

    Electrically conductive PLA with high breaking strength

    € 59,99
    (€ 119,98 / kg)

Model type : 1,75 mm / 500 g

Not available at the moment Regretfully we currently do not have any information on when this product will be available again. Click on the "Notify me when available" button below and we will inform you as soon as the product is back in stock.

Notify me when available

Features & Advantages

  • Conductive
  • Excellent layer adhesion
  • Increased breaking strength
  • Higher melt flow

Item no.: PP-CDP11705, Content: 500 g, EAN: 640970861951

Product information & technical details

  • Item no.: PP-CDP11705
  • Manufacturer No.: CDP11705
  • Manufacturers: Protopasta
  • Content: 500 g
  • Diameter: 1,75 mm
  • Product types: PLA Filaments
  • Filament colour: Black
  • Net weight: 500 g
  • Recommended processing temperature: 195 - 225 °C
  • Recommended heating temperature: 60 °C
Description

Protopasta's Electrically Conductive PLA is a special conductive PLA that can be used to electrify printed parts for simple circuits and touch-sensitive devices. The material has excellent layer adhesion, increased breaking strength and higher melt flow.

Tip: For best printing results, Protopasta recommends using a 0.6mm nozzle and a printing temperature of 210-230°C. Nevertheless, the composite filaments can also be easily printed with a 0.4 mm nozzle. A heated bed is not required.

Technical specifications:

Volume resistivity of cast resin (not 3D printed) 15 ohm-cm
Volume resistance of 3D printed parts along the layers (x/y) 30 ohm-cm
Volume resistance of 3D printed parts against layers (z) 115 ohm-cm

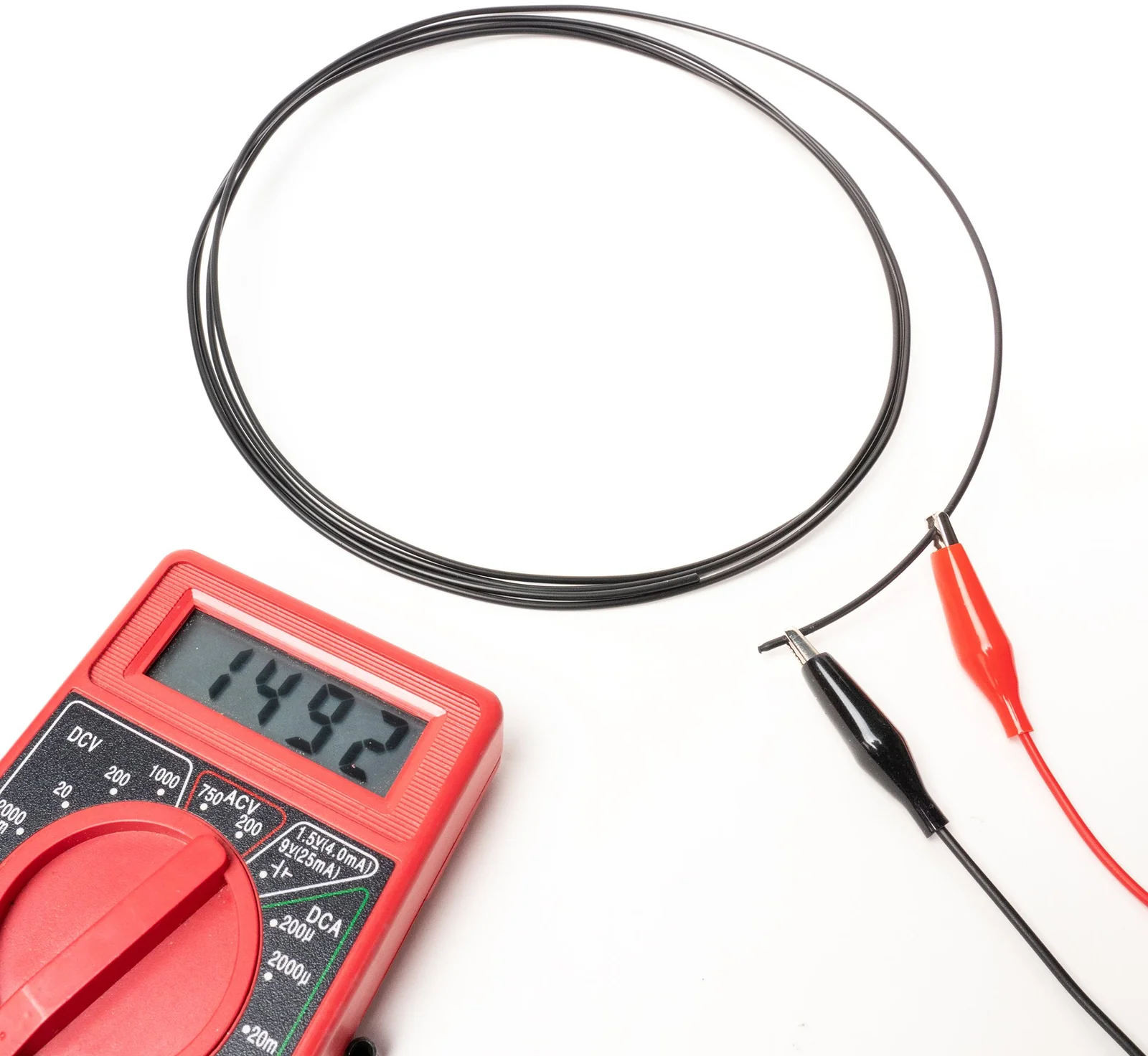

Resistance of a 10cm long 1.75mm filament 2.5-3.5 kOhm
Resistance of a 10cm long 2.85mm filament 800-1200 ohms
Filament spool dimensions
